MICROPOWER_BANDGAP_REFERENCE_SUPPLY

Published:2009/7/2 3:16:00 Author:May | From:SeekIC

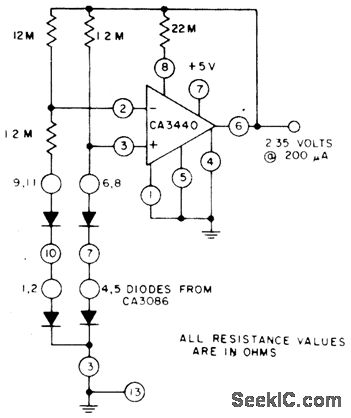

Circuit NotesThe circuit uses a CA3440 BiMOS op amp and CA3086 transistor array. The no-load current from 5-volt supply is 1.5 μA. Load current can go as high as 200 pA and still maintain output voltage regulation within 0.05%.
