MAIN_GATE_MVBR_WITH_TRIODE_LIMITER

Published:2009/7/17 3:39:00 Author:Jessie | From:SeekIC

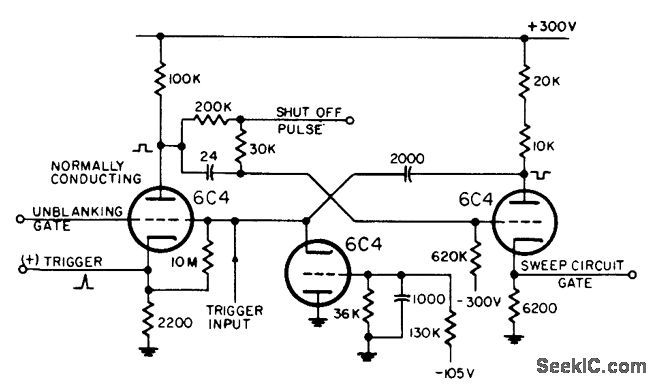

Triode connected to grid of normally-on tube limits swing of voltage. Plate of shutoff tube is tied to point in d-c coupling network between plate and grid, to give greater flexibility in setting plate voltage level of shutoff tube.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N10-5.
