MAGNETICALLY_COUPLED_MVBR

Published:2009/7/16 5:00:00 Author:Jessie | From:SeekIC

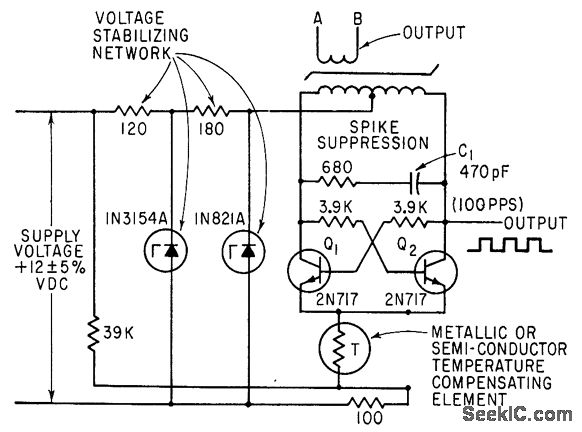

Nonlinear element T in common-emitter lead stabilizes against temperature variation to within 0.1% over 150℃ range. Output is 100 pps. –M. Ingenito, Magnetically Coupled Multivibrators, Electronics, 36:13, p 42-43.
