MAGAMP_REGULATES_2300_V_SUPPLY

Published:2009/7/17 1:56:00 Author:Jessie | From:SeekIC

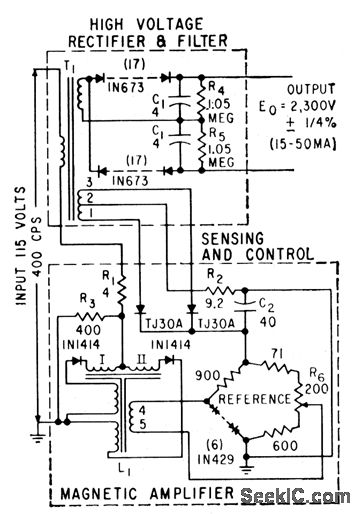

Self-saturating magnetic amplifier is placed on low-voltage input side of high-voltage 400-cps rectifier and auxiliary winding is added for output sensing, to isolate control and sensing functions from high-voltage circuit.-W. J. McDaniel and T. L. Tanner, Regulating High Voltage with Magnetic Amplifiers, Electronics, 32:29, p 64.
