MA3410 practical power supply circuit

Published:2011/7/9 3:57:00 Author:chopper | Keyword: practical, power supply circuit | From:SeekIC

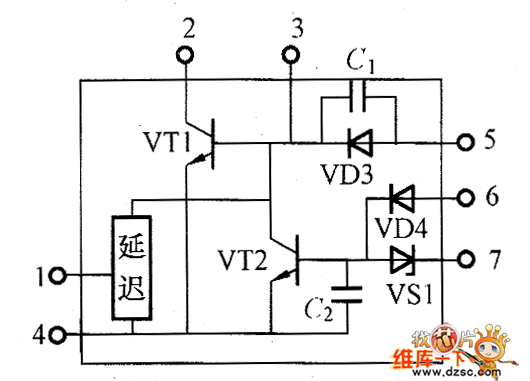

MA3000 series power module is power module with part resonant power supply usage,its features are that it adopts part resonant power supply design which is similar to traditional RCC design method;and it can get a constant control when the circuit is no-load;and it can be high efficiency,low noise,and miniaturization.There is over-current protection function with soft-start function and 7-shaped drooping features; it do good to the entire module package of isolation design;and the oscillation frequency range is narrow. MA3410 practical power supply is shown as picture.
