Low_cost_buck_regulator

Published:2009/7/24 5:44:00 Author:Jessie | From:SeekIC

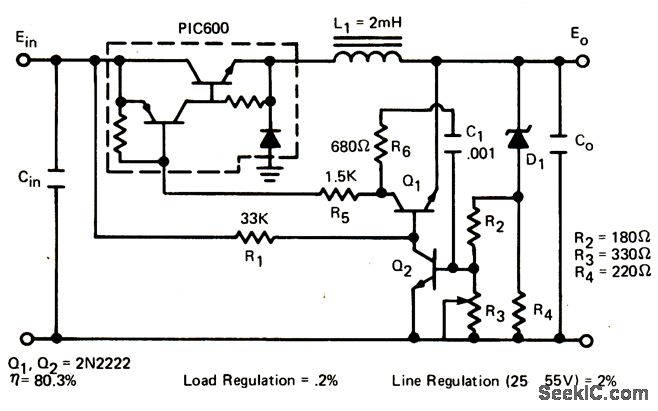

This low-cost circuit provides line regulation (at a value set by D1) with a minimum of components. Typical values for Cin, and Co are 500μF.
