Lithium-ion Battery Charger Two

Published:2011/5/19 22:12:00 Author:Michel | Keyword: Lithium-ion Battery Charger , Two | From:SeekIC

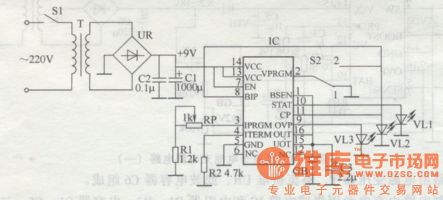

The lithium-ion rechargeable battery charger introduced in the example is made from new type intelligent charging special IC,SC801.It has the functions of overvoltage,overcurrent,overtemperature protection and charging status indication which can choose charging mode according to the batteries and stop charging when the batteries are fully charged automatically. Circuit's Work Principle The circuit of this lithium-ion rechargeable battery charger consists of power supply circuit and charging control circuit and it is showed as the picture 5-74.Power supply circuit is made of mains switch,S1,mains transformer,T and rectifier bridge,UR and filter capcitor,C1.
