Linear_regulator_with_selectable_output

Published:2009/7/23 22:55:00 Author:Jessie | From:SeekIC

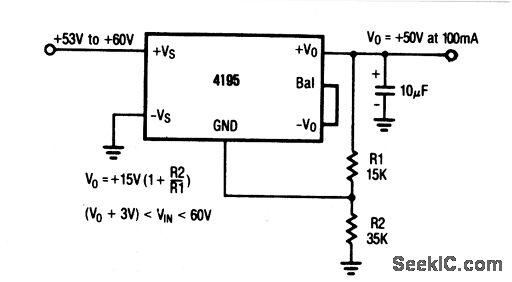

The output of this regulator can be set to any value between + 15 V and +50 V by means of voltage-divider resistors R1 and R2 (as shown by the equations). Connection information is shown in Fig. 7-3B.
