Line_operated_15_kHz_inverter_with_120_volt_output

Published:2009/7/20 21:26:00 Author:Jessie | From:SeekIC

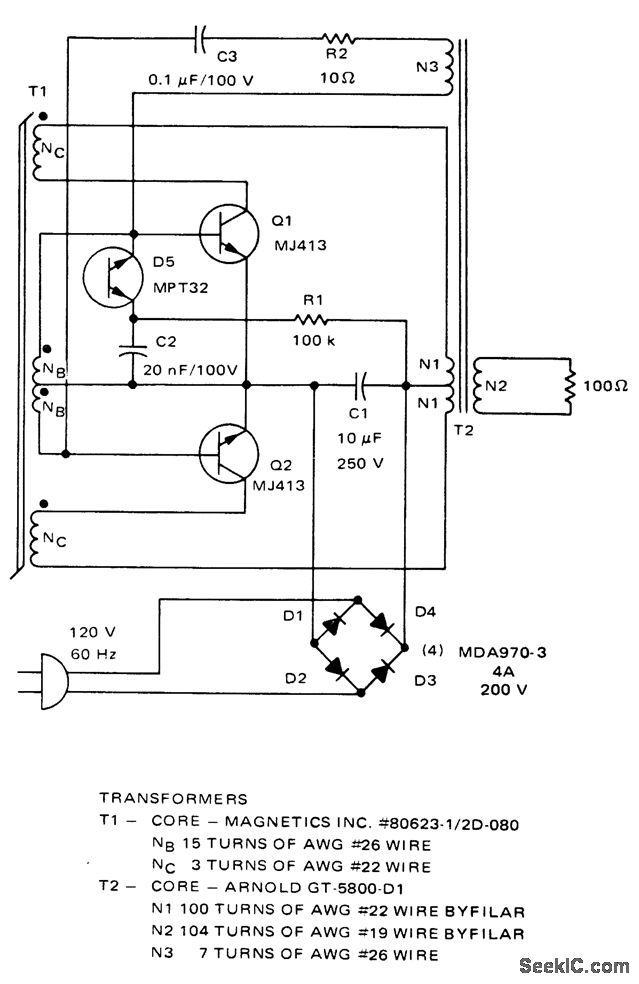

Line operated 15 kHz inverter with 120-volt output. This circuit can be used in ultrasonic applications and for high-frequency fluorescent lights. The output waveform is a 120-volt amplitude-modulated 15 kHz square wave (courtesy Motorola Semiconductor Products Inc.).
