Light control switch circuit composed of silicon photocell

Published:2011/3/29 22:46:00 Author:Nicole | Keyword: Light control switch, silicon photocell | From:SeekIC

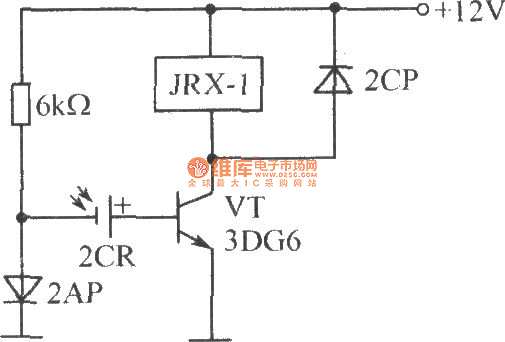

As shown in the figure, in the absence of illumination, VT cuts off (or has smaller collector current, but not enough to relay); After the silicon photocell with light irradiation, it will produce positive voltage to make VT turn on and relay start.
