Latching_DPDT_switch

Published:2009/7/17 2:48:00 Author:Jessie | From:SeekIC

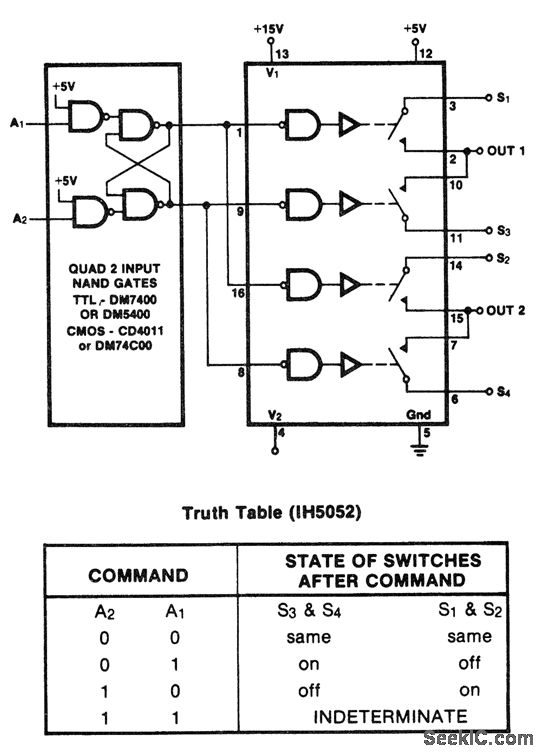

Latching DPDT switch.The A1 and A2 inputs are normally low A high input to A2 turns S1 and S2 on,A highto A1 turns S3 and S4 on,This feature is desirable with limit detectors,peak detectors or mechanical closures(courtesy Intersil,Inc.).
