Large power adjustable charger circuit

Published:2011/9/4 20:41:00 Author:TaoXi | Keyword: Large power, adjustable, charger, circuit | From:SeekIC

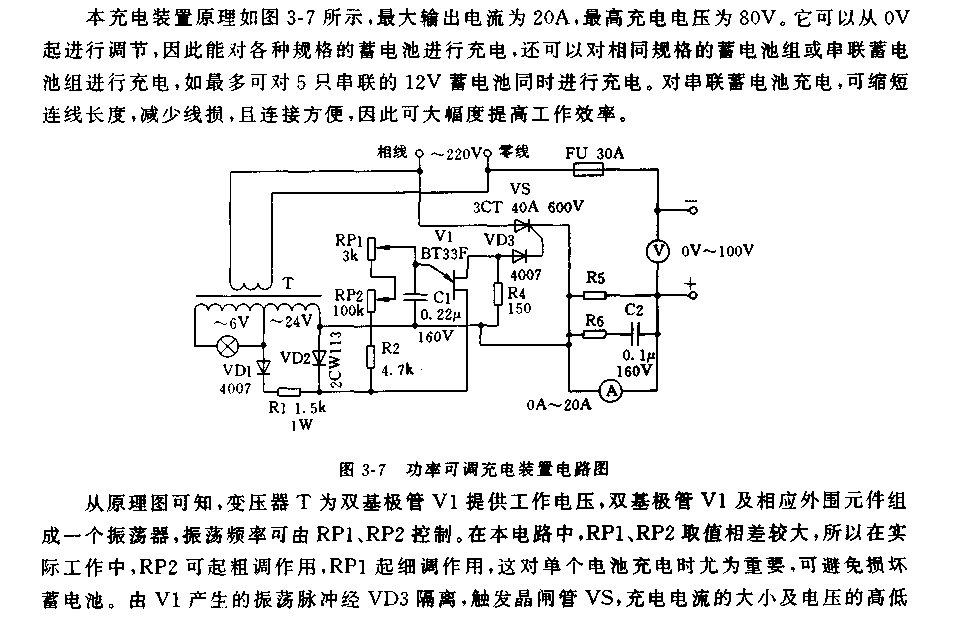

The principle of this charging device is as shown in figure 3-7, the maximum output current is 20A, the highest charging voltage is 80V. It can be adjusted from 0V, so it can charge all kinds of batteries and the battery groups or battery groups in series which have the same specifications, such as five 12V batteries in series. By charging the series batteries, we can shorten the length of wiring and reduce the power consumption, so the operating efficiency is improved.
