KA431--the precise reference regulated integrated circuit

Published:2011/7/13 19:52:00 Author:Borg | Keyword: precise reference, integrated circuit | From:SeekIC

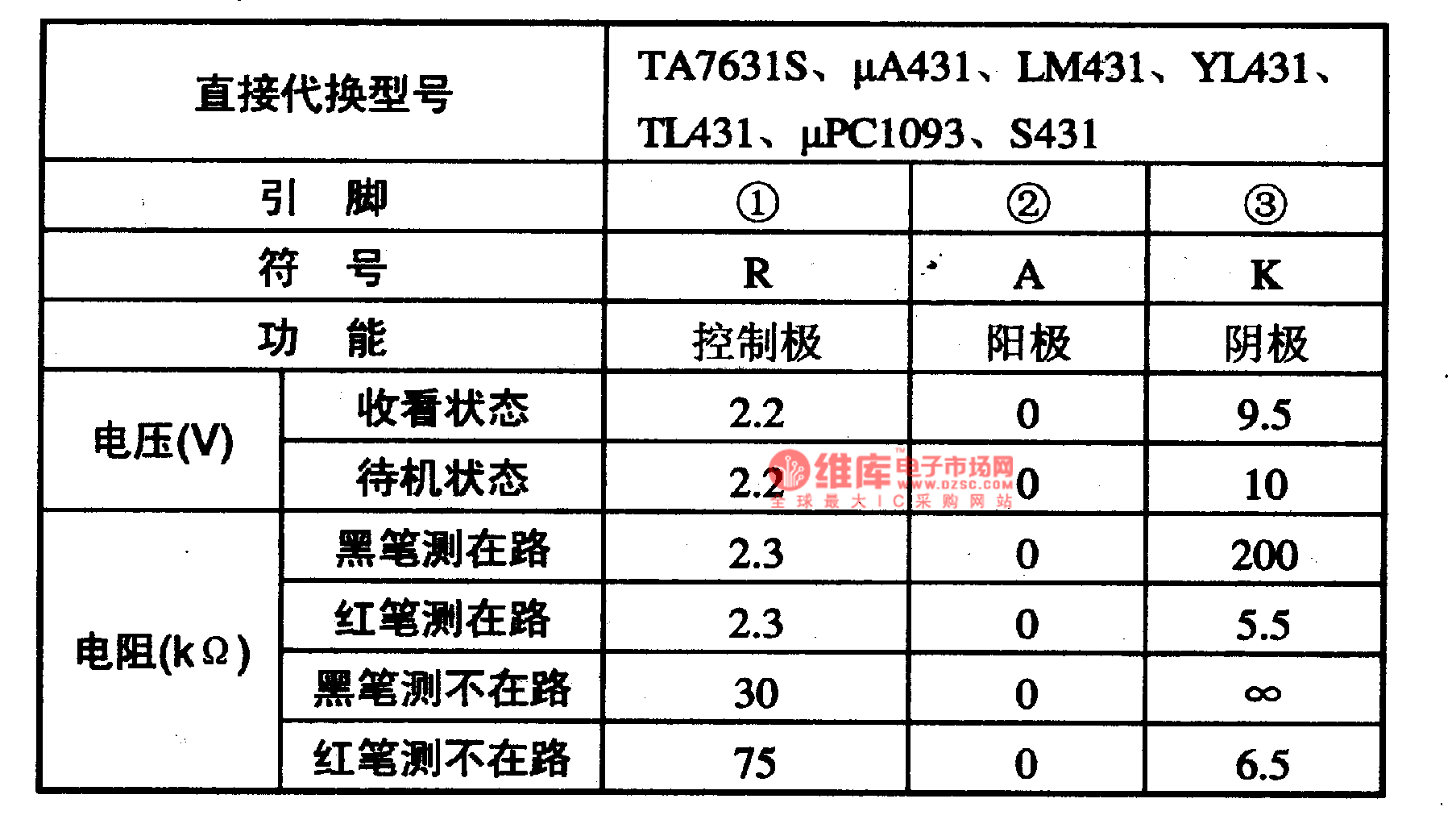

KA431 is a precise reference regulated integrated circuit produced by Samsung, which is widely used in the switch power supply circuit of the color TV, stereo, air-conditioner, disc player and other electric appliances.1.function featuresKA431 contains the sampling fault amplifier circuit, control circuit and other additional circuits.2.pin functions and dataKA431 is in the 3-pin in-line package, whose pin functions and data are listed in table 1-1, and all the data are from the tests on Haier BGBTV-29FA, 29TA, 29F18 and so on.
