K6XH-the communication single chip computer integrated circuit

Published:2011/7/13 23:04:00 Author:Borg | Keyword: communication, single chip | From:SeekIC

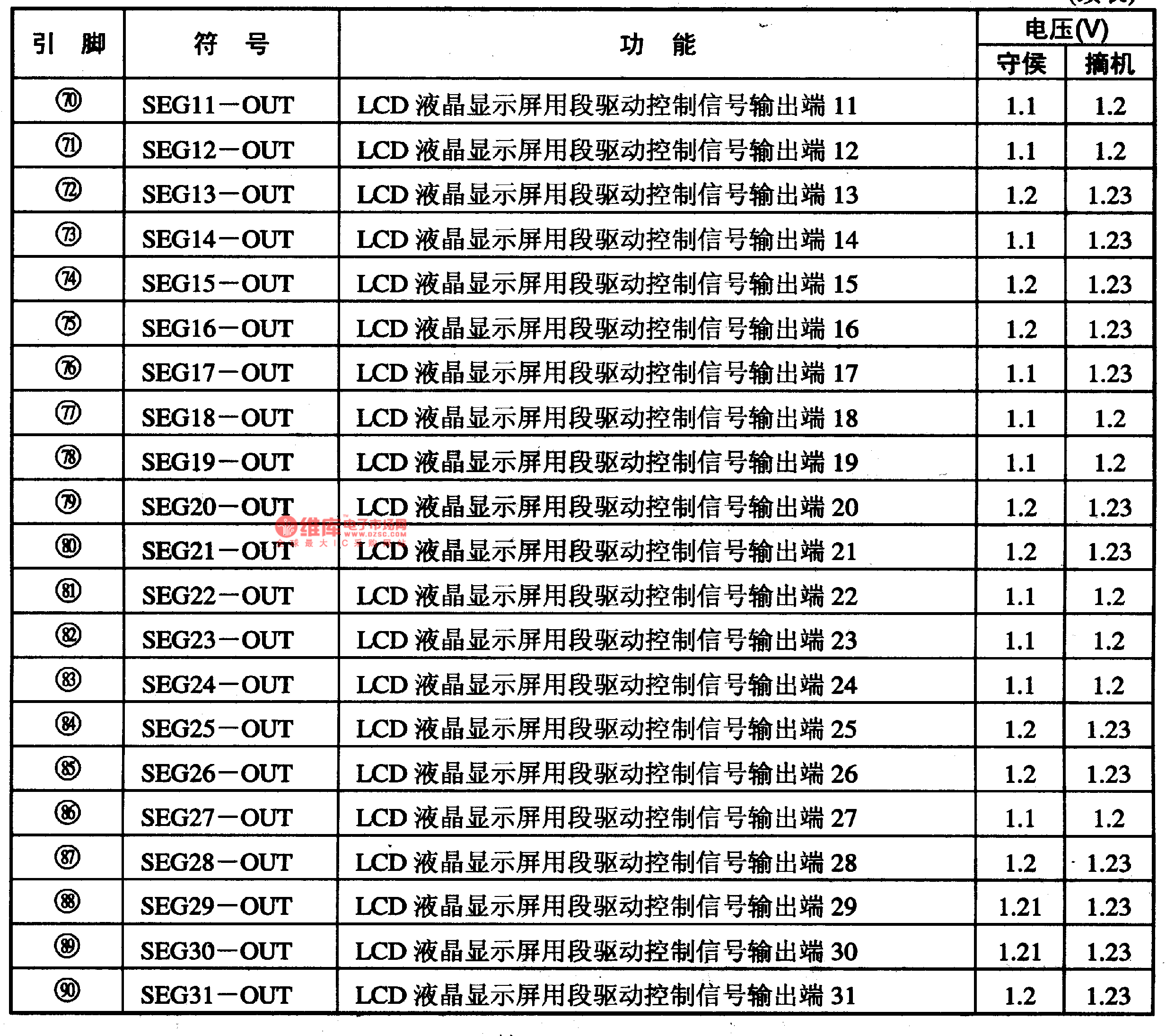

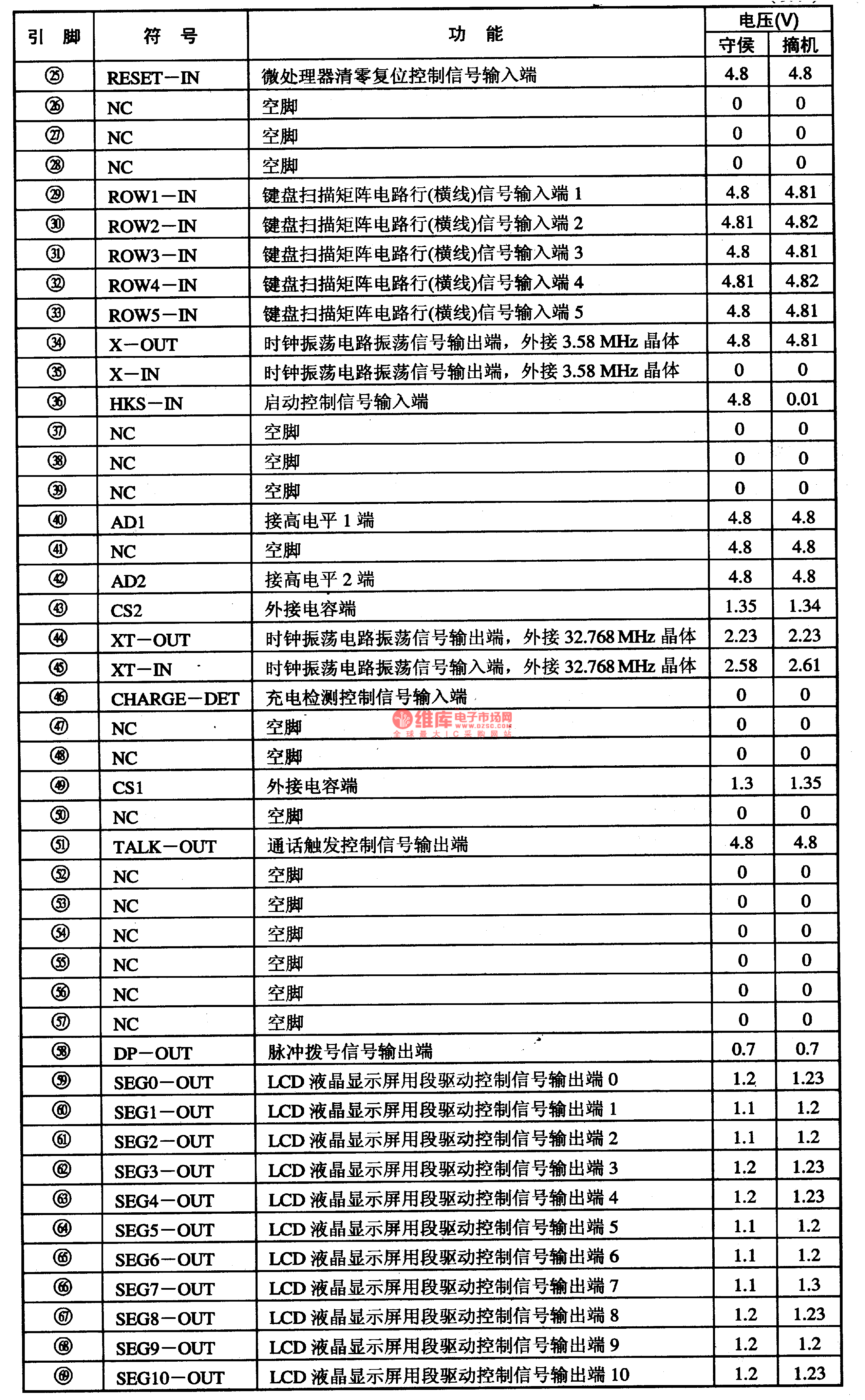

K6XH is a communication single chip computer integrated circuit, which is used in the main control circuit of phones.1.function featuresK6XH contains the pulse/dual audio compatible dialing circuit, keypad switch encoding/decoding circuit, LCD drive control circuit, buzzer drive control circuit, mute control circuit, charge detection circuit, communication control circuit, clock oscillating circuit and other function circuits.2.pin functions and dataK6XH is in 90-pin package.
