JUNKED_TRANSISTOR_REGULATORS

Published:2009/6/23 4:49:00 Author:Jessie | From:SeekIC

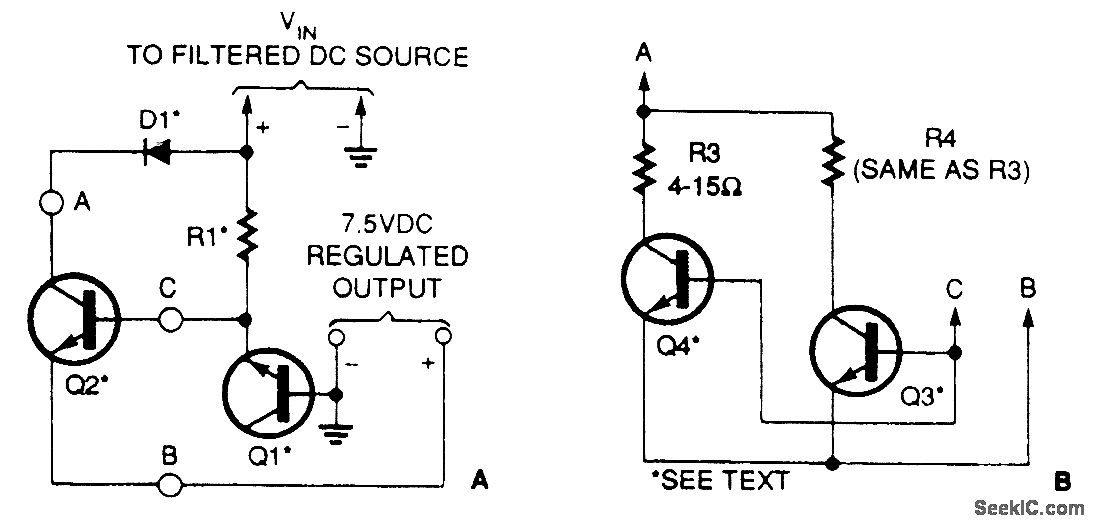

Old transistors can make excellent regulators. Simply use one as a Zener to control the base cur-rent to another transistor (Fig. 68-35A). If the pass transistor cannot supply enough current, you can use two pass transistors in its place (Fig. 68-35B).
