Isolated__15_V_dc_dc_converter

Published:2009/7/24 9:07:00 Author:Jessie | From:SeekIC

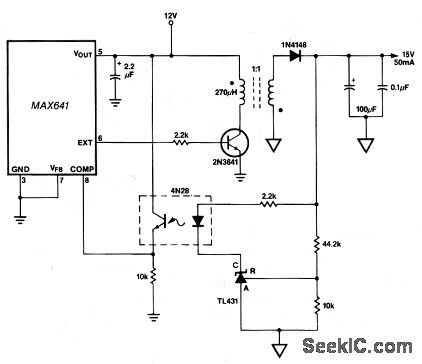

In this circuit, a TL431 shunt regulator is used to sense the output voltage. The TL431 drives the LED of a 4N28 optocoupler, which provides feedback to the MAX641 while maintaining isolation between the + 12-V input and the +15-V output (which is fully regulated with respect to both line and load changes).
