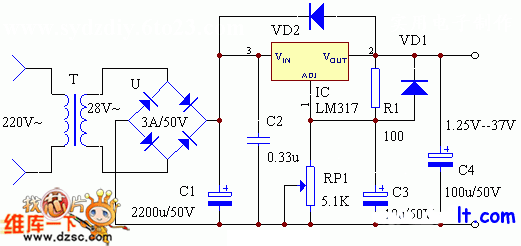

Integrated regulated power supply circuit diagram

Published:2011/6/27 5:00:00 Author:Ecco | Keyword: Integrated , regulated , power supply | From:SeekIC

This is a continuously adjustable output voltage integrated power supply, and the output voltage is continuously adjustable between 1.25-37V, and the maximum output current is up to 1.5A. Circuit is simple and suitable for self-made by electronic lovers. It can be used for a variety of small electrical power supply. LM317 output current is 1.5A, the output voltage can be adjusted continuously between 1.25-37V, and the output voltage is set by two external resistors R1, RP1, and the voltage difference between the output end and adjusting end is 1.25V, and the voltage will produce a few milliamps of current.
