IR_TRANSMITTER_POWER_SUPPLY

Published:2009/7/24 3:54:00 Author:Jessie | From:SeekIC

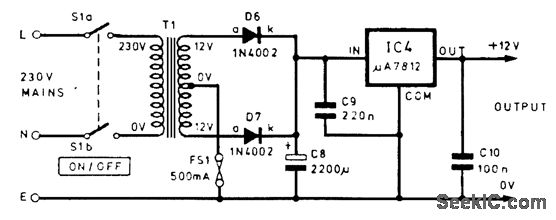

This supply provides 12 Vdc for an IR transmitter or other circuit. The current is about 260 mA. A 120-V transformer can be substituted for the 230-V unit shown, if desired.
