INVERTING_POWER_SUPPLY

Published:2009/6/26 3:43:00 Author:Jessie | From:SeekIC

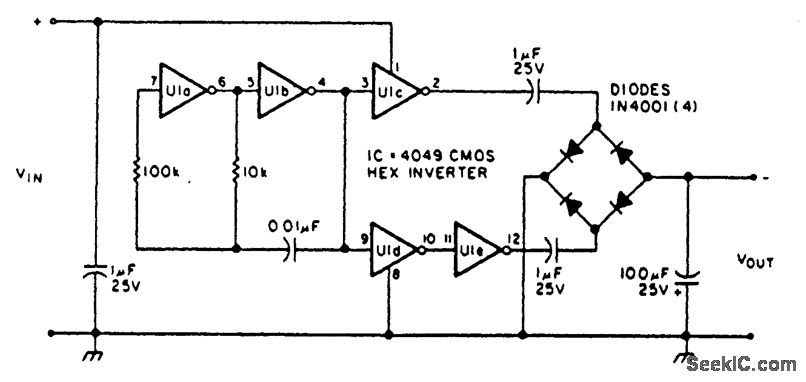

This circuit will provide a negative dc voltage that is approximately equal to the positive input voltage at no load and about 3 V less at 10 mA load. VIN is from +5 to +15 Vdc, Do not exceed 15 V or U1 might be damaged.
