INVERTER_REFERENCE_ELEMENT

Published:2009/7/15 5:23:00 Author:Jessie | From:SeekIC

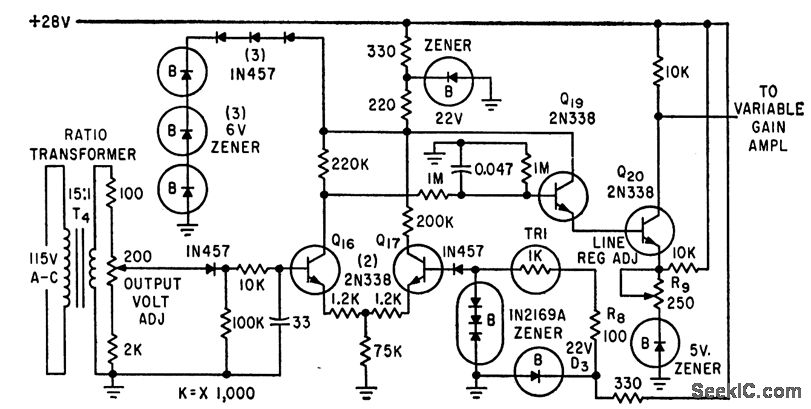

Accuracy and stability of d-c to 400-cps a-c inverter are achieved by temperature compensation of IN2169A zener reference element. Silicon transistors are used where d-c levels are handled.-R. Wileman, linear Circuits Regulale Solid-Stale Inverler, Electronics, 33:16, p 61-63.
