IMPROVED_ULTRA_LONG_MONO

Published:2009/7/16 23:21:00 Author:Jessie | From:SeekIC

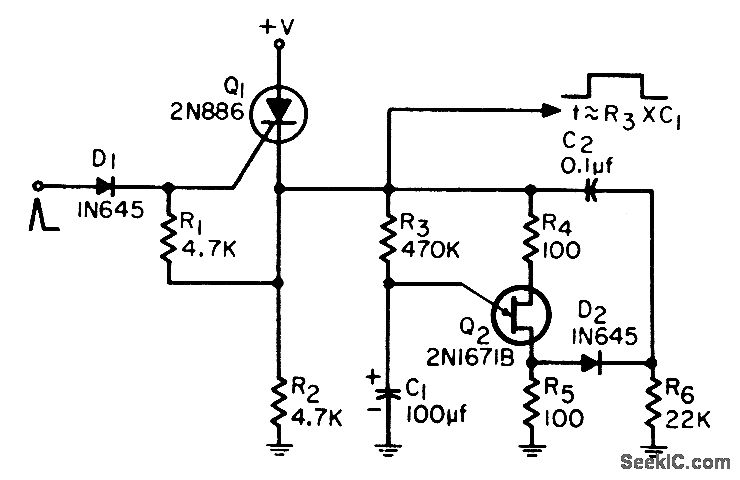

Eliminayion of reset transistor and coupling diode makes circuit insensitive to supply bus transients, cuts standby current to essentially zero, and improves efficiency under heavy loading. Will handle loads above 150 ma.-J. C. Schaeffert and N. F. Goldman, Improved Ultra-Long Monosable Multivibrator, EEE, 12:12, p 57-58.
