ICL7106-the A/D converter integrated circuit

Published:2011/7/13 22:46:00 Author:Borg | Keyword: A/D converter | From:SeekIC

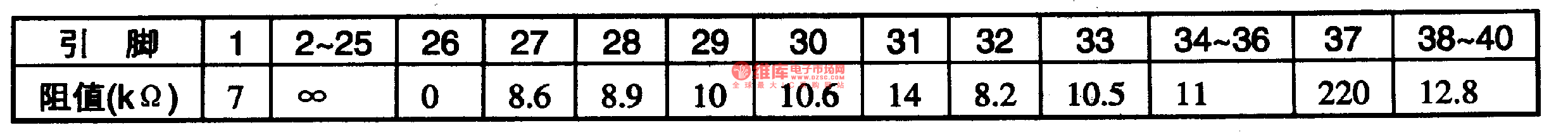

ICL7106 is an A/D converter integrated circuit, which is widely used in 3 1/2 digital multimeters (such as DT830 and DT890).1.function featuresICL7106 contains the clock oscillating circuit, display digit screen drive control circuit, A/D converter circuit, and other additional function circuits.2.pin functions and dataICL7106 is in the 40-pin dual line package, whose pin arrangement and functions are shown in figure 1-1, the actually measured resistances are listed in table 1-1.Notes: ICL7106 can be replaced by TSC7106 directly.
