High_voltage_booster

Published:2009/7/17 4:56:00 Author:Jessie | From:SeekIC

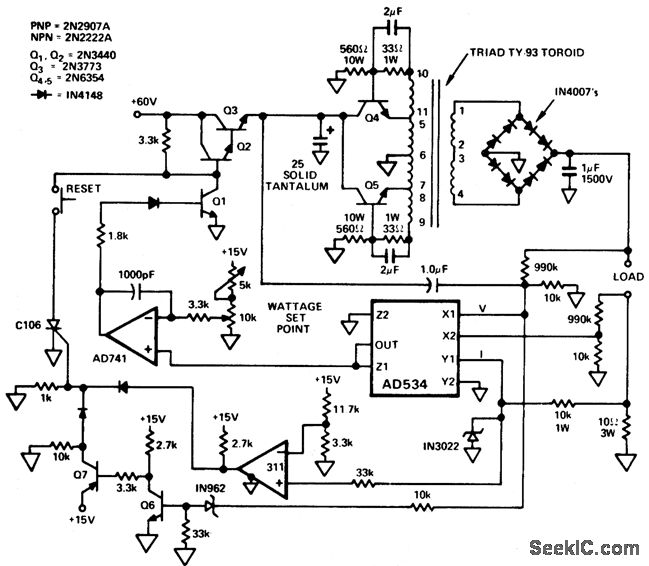

High-voltage booster. Care should be taken with this circuit because it takes 300 mW and turns it into 1000 volts at 300 watts,This is many times greater than is necessary to kill and is absolutely lethal The AD534 is used to control the output of toroidal DC-to-DC converter.Both the AD534 multiplier and the DC-to-DC converter are inside the AD741's feedback loop,The inverter frequency is 4 kHz (courtesy Analog Devices,Inc.).
