High_speed6_A_single_MOSFET_drivers

Published:2009/7/24 1:26:00 Author:Jessie | From:SeekIC

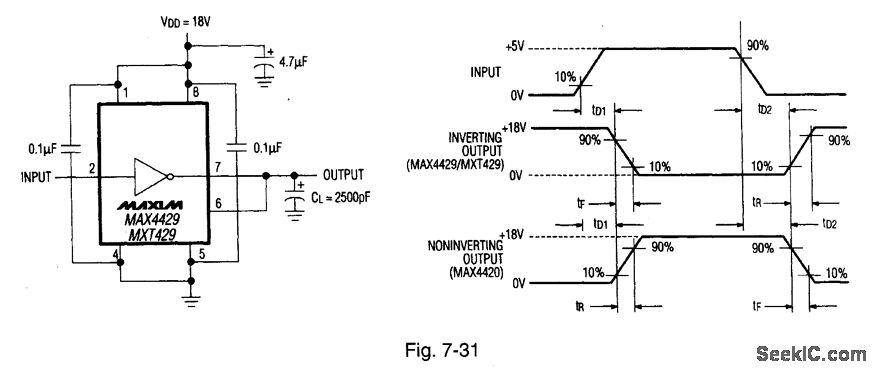

Figure 7-30 shows the MAX4429/MXT429 connected to translate TTL/CMOSinputs to high－voltage/high－current outputs，The output impedance is 1.5 Ω witha 6－A current．Delay time is 40 ns, with 25－ns rise/fall times(into a 2500－pF load)．Figure 7－31 shows the timing test circuit．The supply range is 4.5 V to 18 V，with anoutput swing to within 25 mV of VDD and ground．MAXIM NEW RELEASES DATABook,1994, P.4－31.4－35，
