High resistance distribution circuit diagram

Published:2014/2/17 23:29:00 Author: | Keyword: High resistance distribution circuit diagram, | From:SeekIC

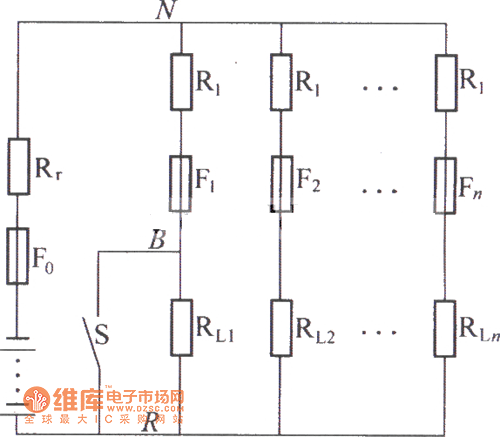

As shown in figure for high resistance distribution circuit diagram. It with low resistance distribution in the load distribution is the significant difference between concatenated certain resistance current limiting resistor R1, general value for 5 times ~ l0 times of battery internal resistance. If a shunt short-circuit happened at this moment, the system voltage drop and recoil peak voltage is small, this is because the R1 limiting the short-circuit current, at the same time L x di/dt is lesser also. As shown is voltage variation between N and R. Selecting suitable R1 and Rr, can make the voltage change between N and R within the scope of the power system permitted error, the system of independent among load, mutually influence. Over the road purpose to enhance the reliability of communication system. In practice, can be developed the application of multilevel high resistance distribution.
