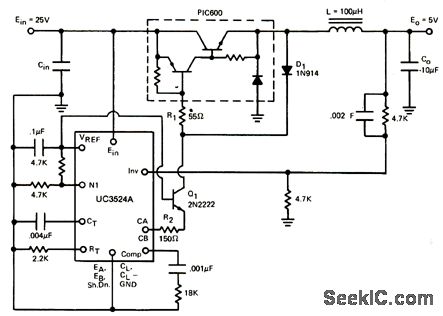

High_frequency_switching_regulator

Published:2009/7/24 8:17:00 Author:Jessie | From:SeekIC

Because of their fast switching time, low-voltage hybrid circuits (such as the PIC600) can be operated as high as 250 kHz. The advantages of the higher frequencies are: lower filter cost, reduced size and weight, improved transient response, output ripple less dependent on capacitor ESR, and simpler EMI and RFI filtering.
