HUMAN_BODY_MODEL

Published:2009/7/16 23:26:00 Author:Jessie | From:SeekIC

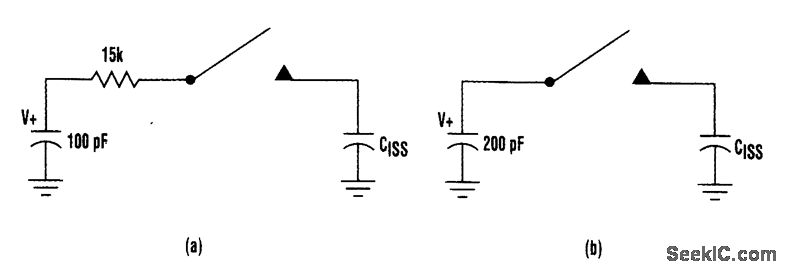

The human-body model (HBM) is approximated with a series capacitor and resistance (a); the machine model (MM) is simply a capacitor (b). The model is charged to the required test voltage (V+) and switched into the device. If the input capacitance of the device (CISS) charges to higher-than-rupture voltage, the device will be destroyed.
