The HT9215D intergrated circuit of PC dialing is widely used in all kinds of phones.
1. Function Features
HT9212D intergrated circuit contains sub circuits of pulse/tone compliant dialing and key switch signal encoding/decoding.
2.pin functions and relevent data
Pin functions and relevent data of the HT9215D intergrated circuit are listed in Table 1-1.

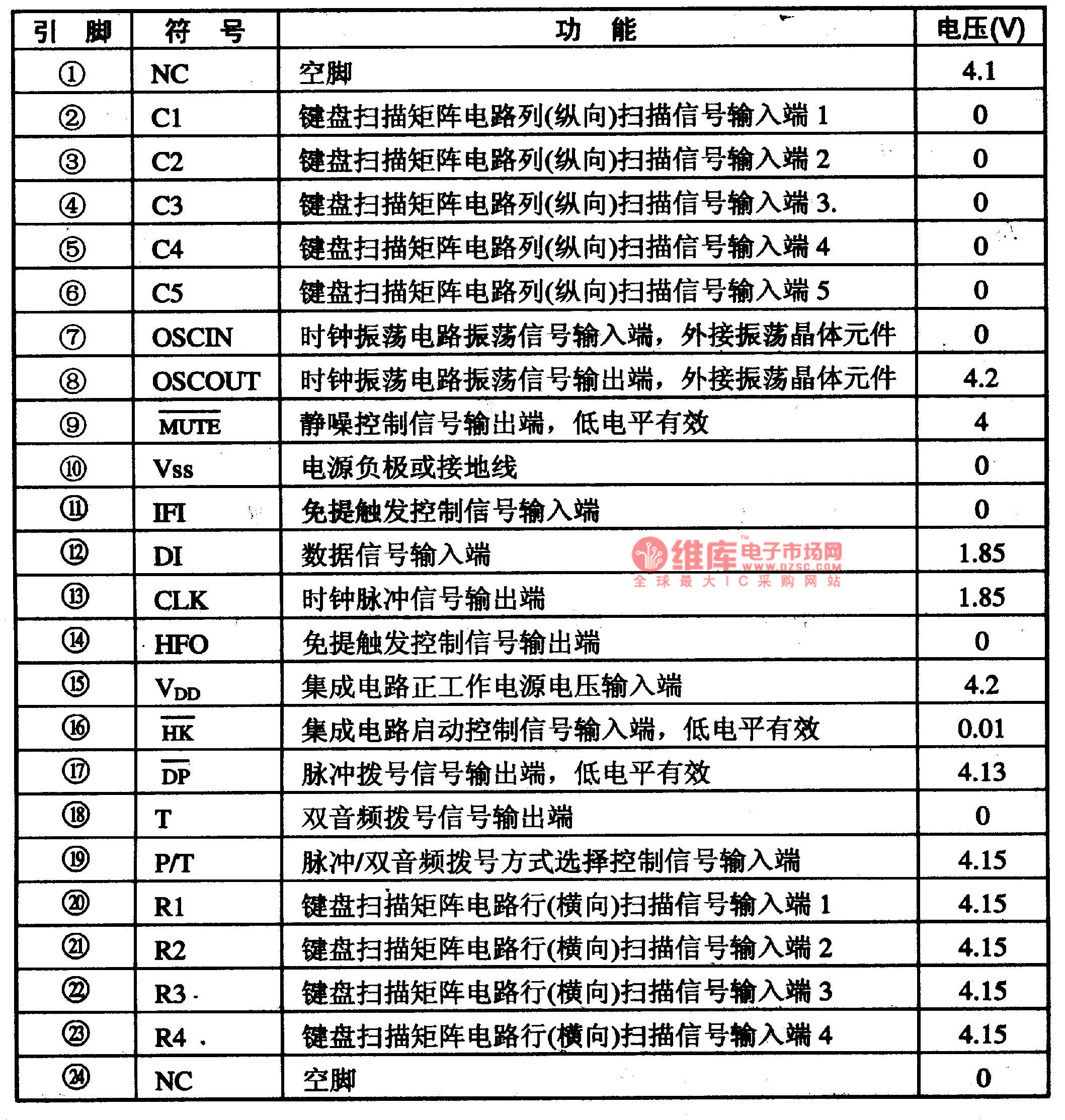

Table 1-1 Pin functions and relevent data of the HT9215D intergrated circuit
