HM9114A-The Intergrated Circuit of Microcomputer Dialing

Published:2011/5/11 2:05:00 Author:Borg | Keyword: Intergrated Circuit, Micro Computer | From:SeekIC

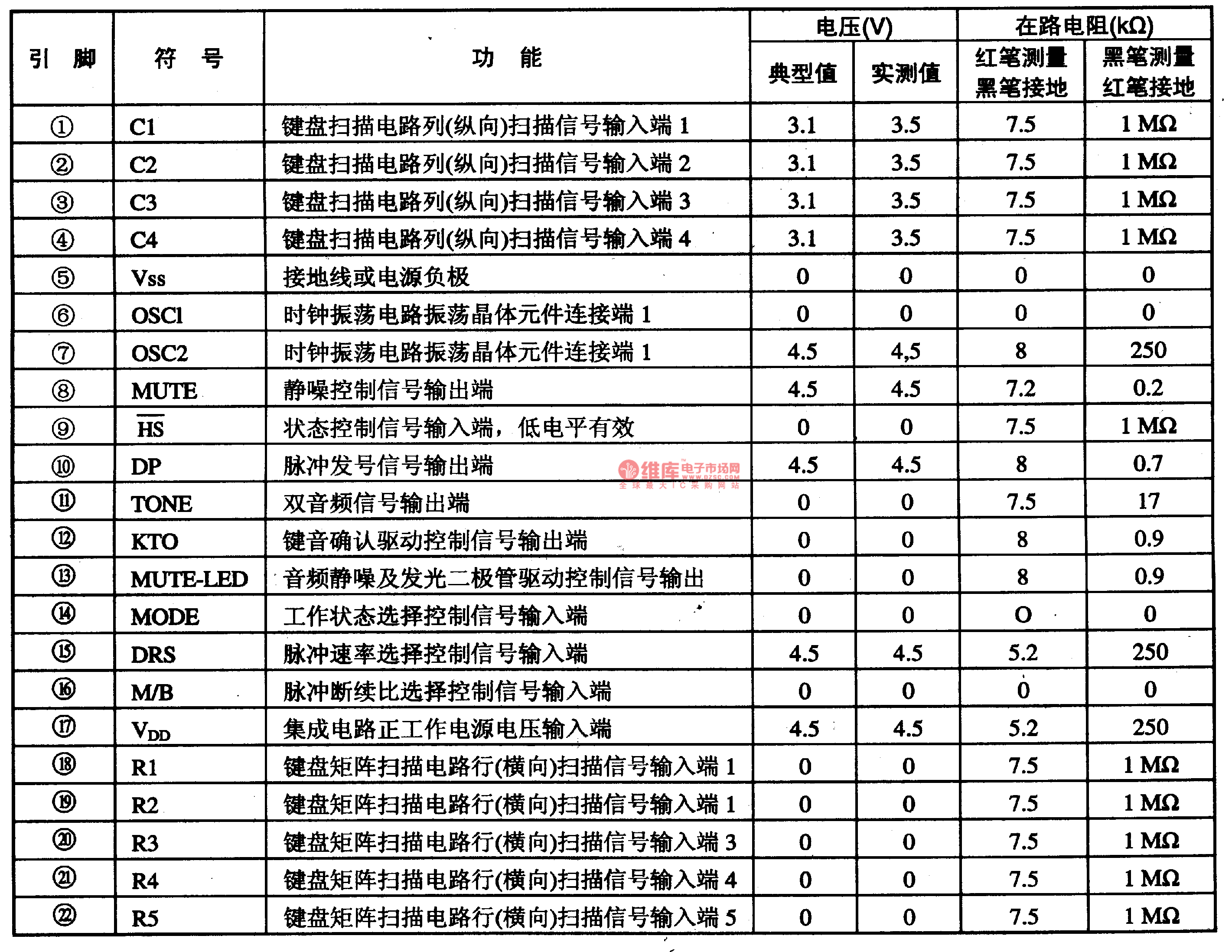

HM9114A is an intergrated circuit of microcomputer dialing,which is widely used in all kinds of phones. HM9114A is encapsulated in dual-line ways with 22-lead, whose pin functions and data are listed in Table 1-1. Table 1-1 pin functions and data of HM9114A
