HM9102A/D is an intergrated circuit of microcomputer dialing,which is widely used in all kinds of phones.
HM9102A/D is encapsulated in dual-line ways with 18-lead, whose pin functions and data are listed in Table 1-1.

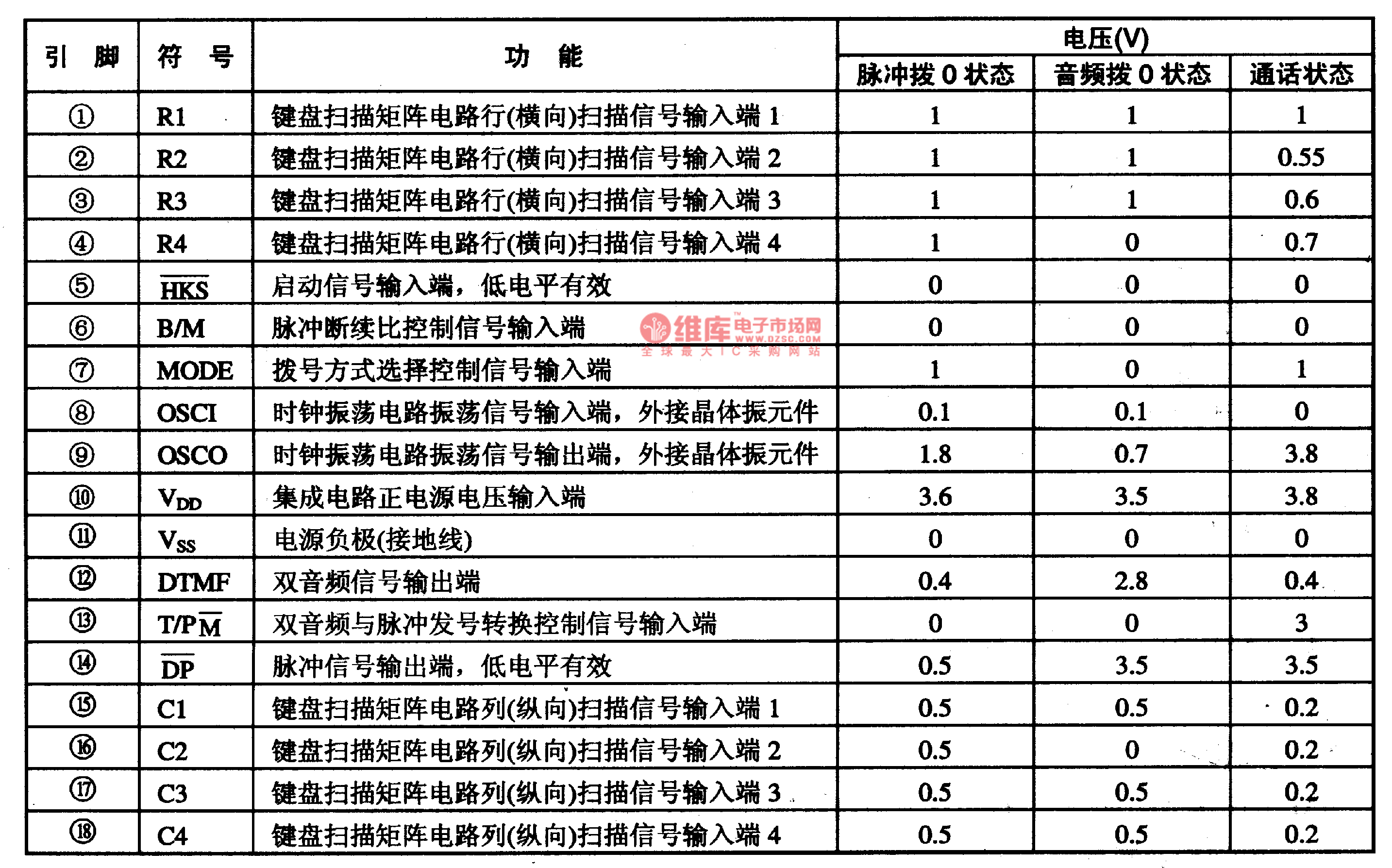

Table 1-1 pin functions and data of the HM9102A/D pulse/two-tone audio dialing circuit
