HIGH_POWER_PULSE_GENERATOR

Published:2009/7/17 5:05:00 Author:Jessie | From:SeekIC

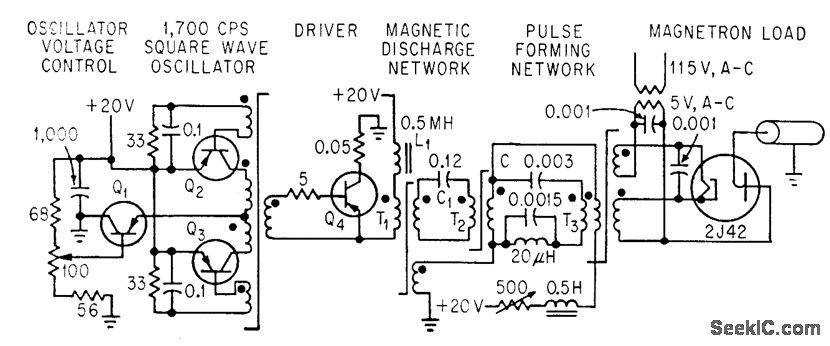

Power transistors and saturable transformers serve in place of hydrogen thyratrons for generating pulses with 1-megawatt peak power for sonar and radar. Low-voltage capacitor is first charged to voltage that is regulated on pulse-to-pulse basis rather than from regulated supply. Capacitor is then discharged through saturable stop-up transformer L1 to charge high-voltage capacitor, which in turn is discharged through magnetron load.-R. T. Maguire, SCR's to Pulse Radar, Electronics, 37:3, p 14-15.
