HIGH_COMPLIANCE_CURRENT_SOURCE

Published:2009/7/13 5:05:00 Author:May | From:SeekIC

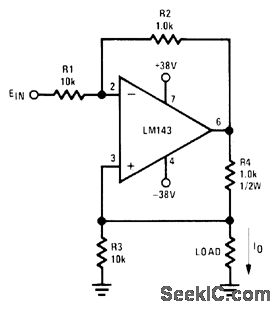

Non-inverting input of LM143 high-voltage opamp senses current through R4 to establish output current that is proportional to input voltage. With ±38 V supply, compliance of current source is ±28V. - Linear Applications, Vol. 2, National Semiconductor, Santa Clara, CA,1976, AN-127,p3.
