HARD_TUBE_MODULATOR

Published:2009/7/17 5:18:00 Author:Jessie | From:SeekIC

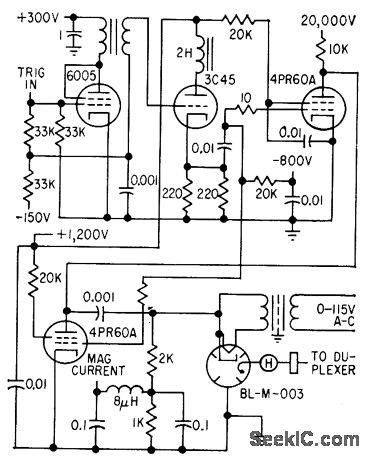

Supplies 0.02-microsec 180-kw modulating pulses at prf of 14,400 pps. Hard tube is used because hydrogen thyratron of adequate power-handling capability would not deionize rapidly enough at this prf.-R. F. P. Smith, Airport Radar Has High Resolution, Electronics, 32:14, p 64-69.
