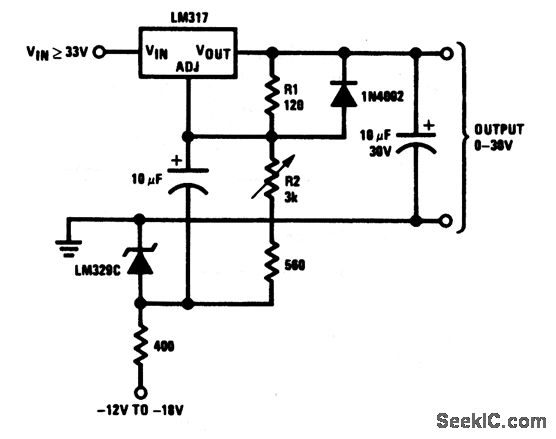

General_purpose_linear_supply_regulator

Published:2009/7/23 23:11:00 Author:Jessie | From:SeekIC

This circuit can be used as a general-purpose lab supply. Although a negative source must be provided, the source does not need to be well regulated.
