G_M_COUNTER_FOR_TRACERS

Published:2009/7/19 22:00:00 Author:Jessie | From:SeekIC

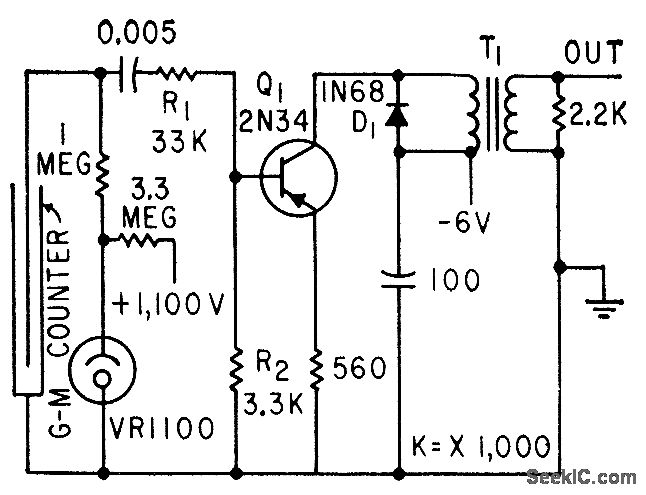

Monitors radioactivity level of lowing liquids or gases for long periods of time. Concentration of 0.1 microcurie per liter of liquid gives counting rate of 200 cpm above 300-cpm background count when using iodine-131. Output pulse is 0.75 v in amplitude and 20 microsec wide.-F. E. Armstrong and E. A. Pavelka, Monitoring Radioisotope Tracers in Industry, Electronics, 32:26, p 42-43.
