GENERIC_TRIAC_SWITCH_INTERFACE_FOR_INDUCTIVE_LOAD

Published:2009/7/16 23:26:00 Author:Jessie | From:SeekIC

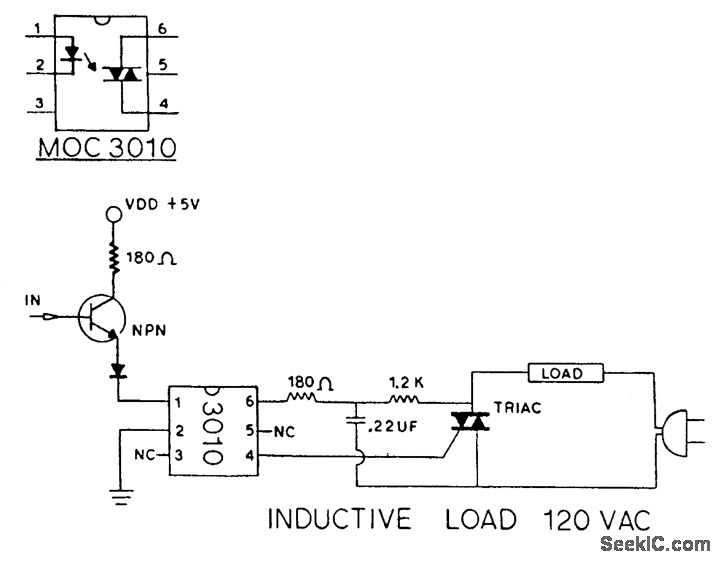

A TTL level input turns on the MOC3010 optocoupler and triggers the triac, applying 120 Vac to the load.
