GEIGER_COUNTER_700_V_LOW_CURRENT_SUPPLY

Published:2009/7/16 21:45:00 Author:Jessie | From:SeekIC

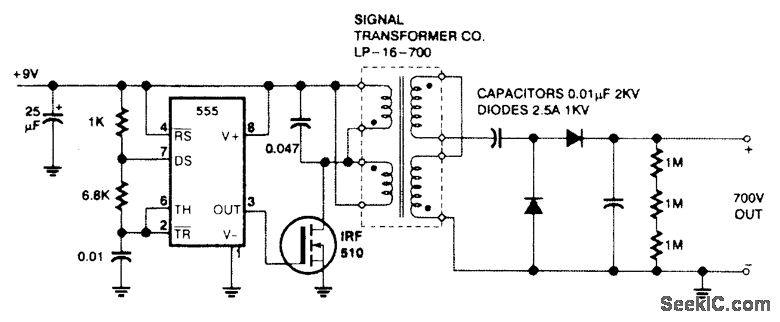

This 700-V, 0.25-mA power supply converts a +9-Vdc input to 10-kHz ac, then uses the setup transformer and the voltage-doubler circuit to produce the required output.
