GATED_ASTABLE_PULSE_TRAIN_GENERATOR

Published:2009/7/16 20:47:00 Author:Jessie | From:SeekIC

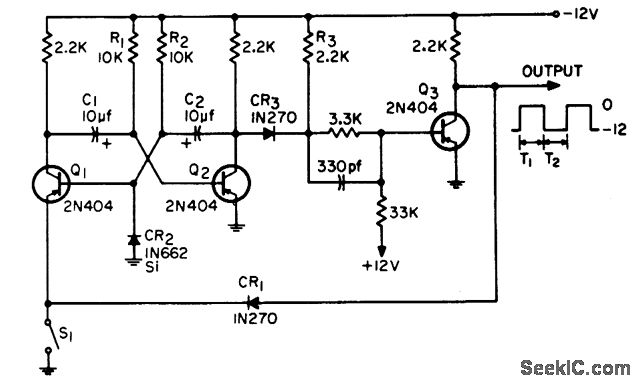

Uses standard logic circuits with self-completing action to produce pulse train having any desired integral number of pulses. First pulse starts when S1 is closed, and last pulse is completed when S1 is open. Selfcompleting action is produced by or function of S1 und CR1.-M. Neidich, Self-Completing Gated Astable, EEE, 13:1, p 66 and 75.
