Fire_siren_using_an_LM3909_chip

Published:2009/7/17 4:47:00 Author:Jessie | From:SeekIC

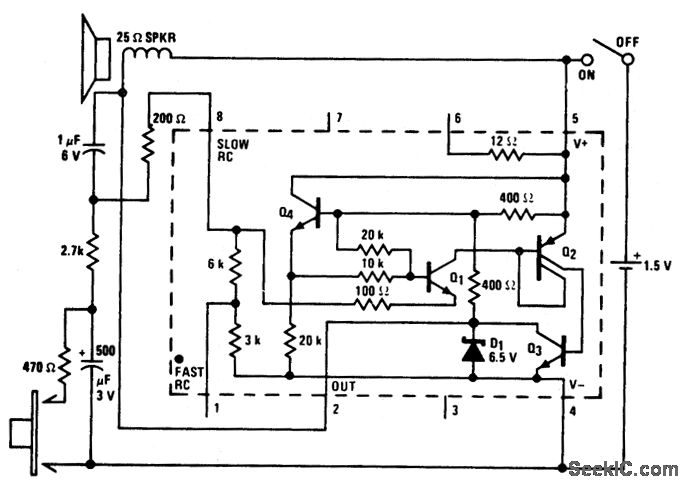

Fire siren using an LM3909 chip. Circuitry inside dashed lines is the LM3909.This circuit produces a rapidly rising sound when pressing the pushbutton and a coasting sound upon release (courtesy National Semiconductor Corporation).
