Fast storage battery charging system

Published:2011/4/19 8:37:00 Author:May | Keyword: Fast, storage battery, charging system | From:SeekIC

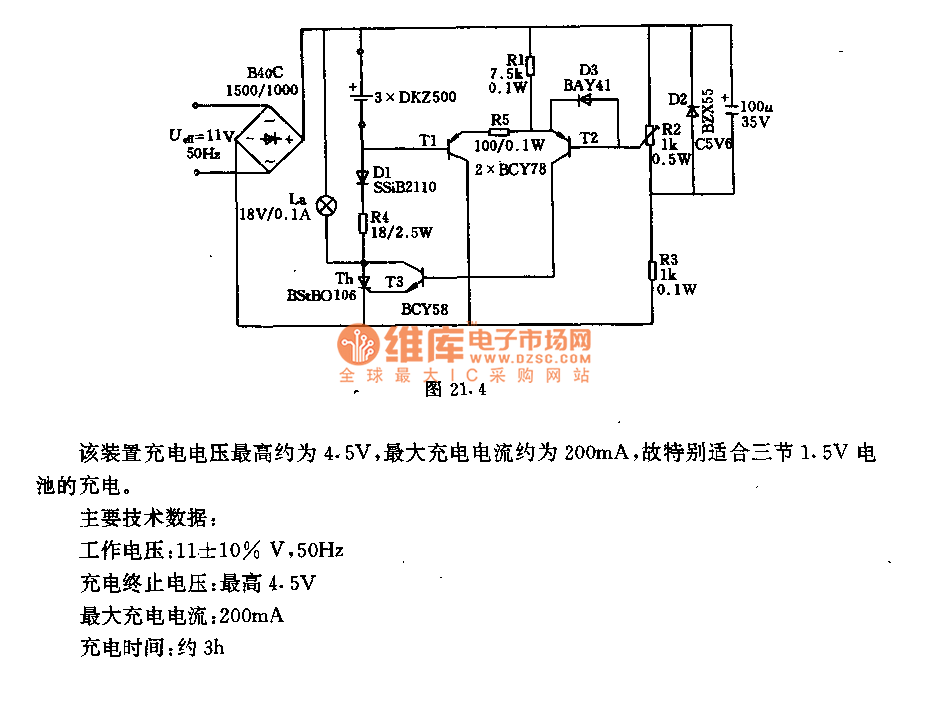

The maximum charging voltage of this system is about 4.5VA. Its maxuimum charging current is about 200mA. So it is suitable for the charging of three 1.5V battery.Main technology data:working voltage:11±10%V, 50Hzcharging end voltage: the highest is 4.5Vmaxuimum charging current: 200mAcharging time: about 3h
