FLUORESCENT_TUBE_POWER_SUPPLY

Published:2009/6/25 0:02:00 Author:Jessie | From:SeekIC

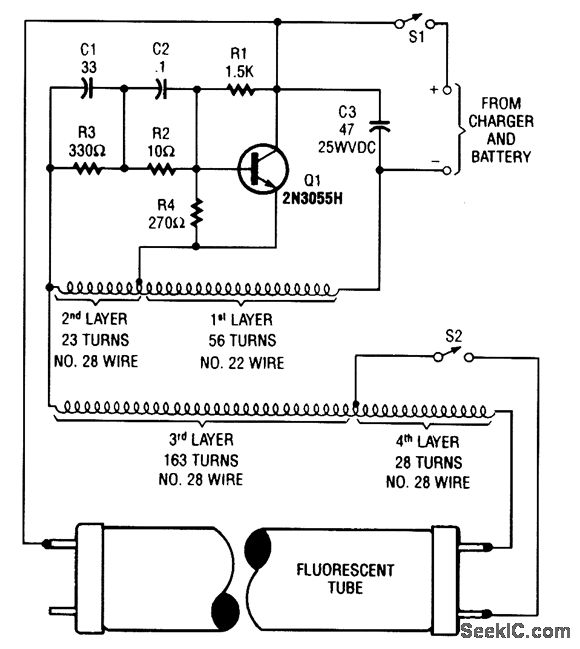

A 2N3055 oscillator (Q1) drives a homemade transformer, wound on a 5/16 × l7/8 ferrite rod. S2 is used as a filament switch and it can be eliminated, if desired. A 20-W fluorescent tube is recom-rnended. The supply is 12 V.
