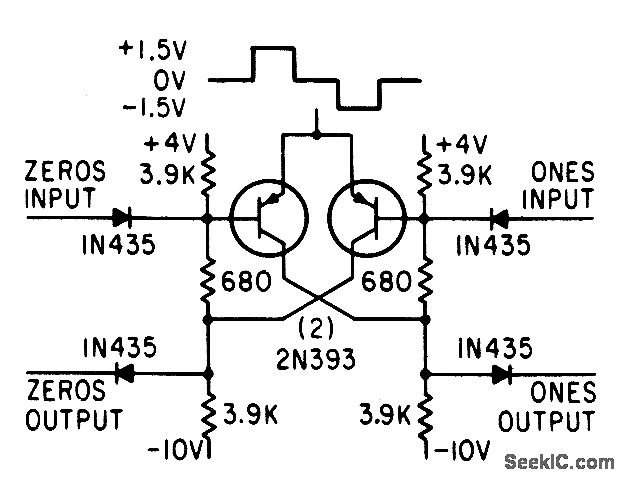

Eccles-Jordon type circuit uses surface-barrier transistors with saturation biasing. Large registers for computers are assembled by using one flip-flop per digit.-W. Orvedahl and J. H. Shepherd, Designing Data Registers with Simple Diode Circuits, Electronics, 36:8, p 48-50.
