FET_LINEAR_MODULATOR

Published:2009/7/15 21:49:00 Author:Jessie | From:SeekIC

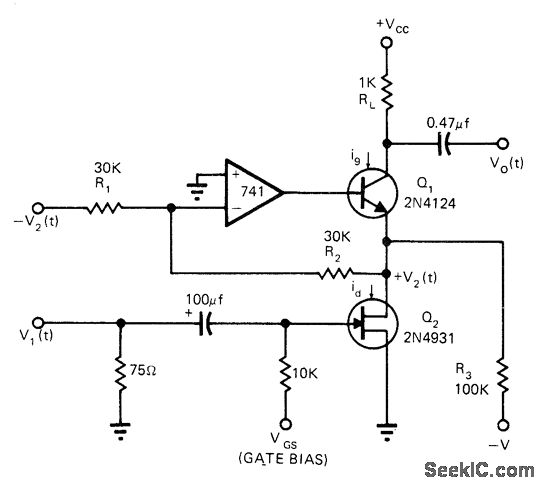

Circuit developed for closed.-circuit industrial color television system uses linear portion of operating characteristic for 2N4931 FET to provide linear response at modulation frequencies from 1 MHz down to near zero. Article gives design equations.-G.R. Shapiro, Analog Multipliers Offer Solutions to Video Modulation Problems, EDN Magazine Sept 1,1972, p 40-41.
