FET_CONVERTS_TRIANGULAR_TO_SINE

Published:2009/7/17 1:43:00 Author:Jessie | From:SeekIC

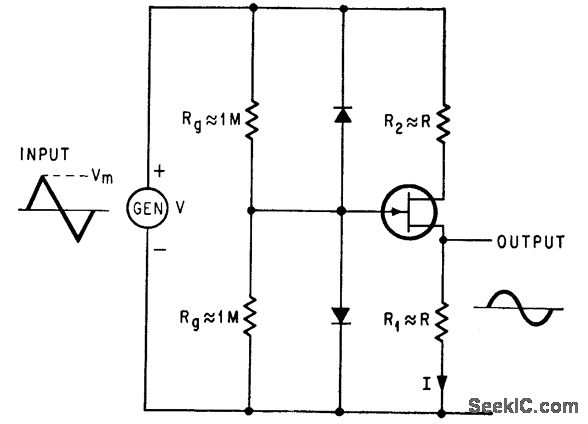

Eliminates need for signal rectification by using symmetrical properties of Fairchild FSB40 fet with respect to source and drain. For p-channel units, reverse the diodes.-R. D. Middlebrook and 1. Richer, Nonreactive Filter Converts Triangular Waves to Sines Electronits, 38:5, p 96-101.
