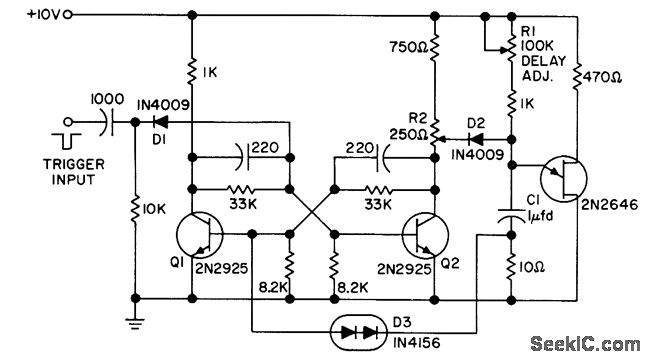

FAST_RECOVERY_HYBRID_ONE_SHOT

Published:2009/7/16 23:15:00 Author:Jessie | From:SeekIC

Improved configuration provides wide timing range, good timing stability, and clean waveforms over extremely wide range of duty cycles. Can be retriggered immediately after completion of timing cycle without loss in overall timing accuracy.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 346.
