Dc_dc_converter_1

Published:2009/7/24 5:33:00 Author:Jessie | From:SeekIC

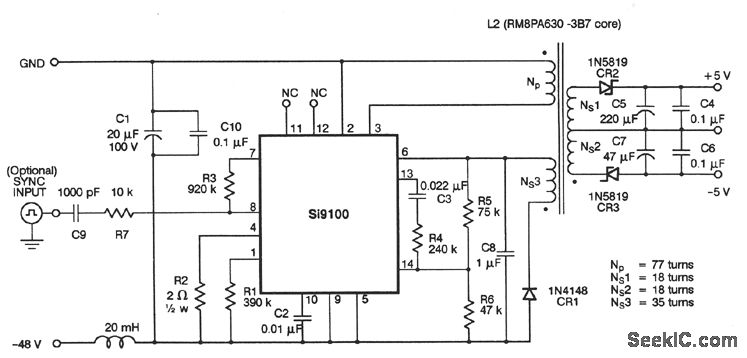

This circuit is similar to that of Fig. 4-22, except that a 3-W Si9100 is used instead of a 1-W Si9105 as the switchmode regulator. Notice that the sync input (at pins 7 and 8) is optional for both circuits.
