D_C_SWITCHED_REGULATOR

Published:2009/7/20 4:36:00 Author:Jessie | From:SeekIC

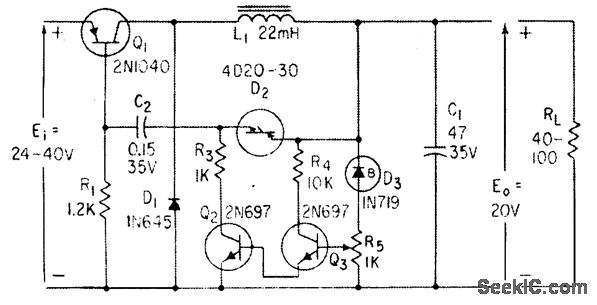

Gives 0.5% regulation for input voltage range from -15% to +30%. Efficiency is 95%. Transistor is near-ideal switch, having low leakage when open and low voltage when closed.-A. A. Sorenson, Solid-State D-C Switched Regulators, Electronics, 33:48, p 121-123.
