DUAL__52_V_AND___15_V

Published:2009/7/6 2:08:00 Author:May | From:SeekIC

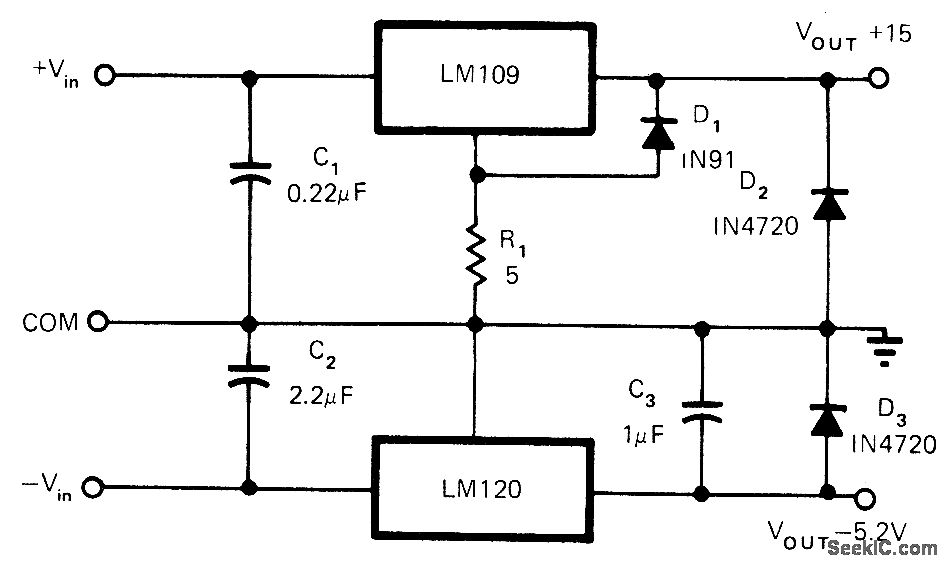

Output voltages are equal to preset values of regulator ICs in basic arrangement shown. R1 and D1 ensure startup of LM109 when common load exists across sup-plies. D1 should be germanium or Schottky hav-ing forward voltage drop of 0.4V or less at 50 mA. D2 and D3 protect against polarity reversal of output during overloads.-C. T. Nelson, Power Distribution and Regulation Can Be Simple, Cheap and Rugged, EDNMagazine, Feb, 20, 1973, p 52-58.
