DUAL_POLARITY_POWER_SUPPLY

Published:2009/6/28 21:30:00 Author:May | From:SeekIC

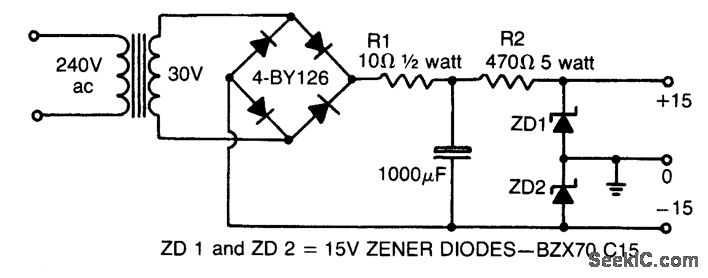

This simple circuit gives a positive and negative supply from a single transformer winding and one full-wave bridge. Two zener diodes in series provide the voltage division and their centerpoint is grounded. (The filter capacitor must not be grounded via its case).
