DOUBLE_PULSE_GENERATOR

Published:2009/7/19 20:52:00 Author:Jessie | From:SeekIC

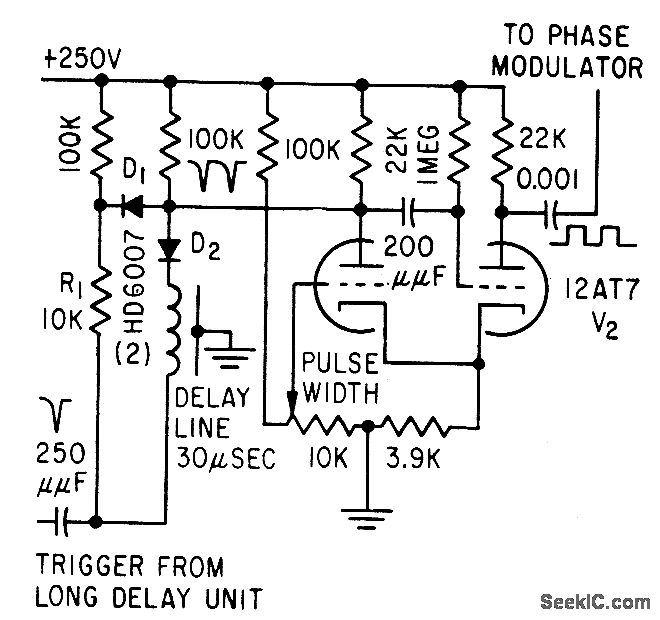

Used in responder-interrogator range computer to produce pair of 15-microsec-wide pulses spaced 30 microsec. Monostable mvbr receives two triggers, one through 30-microsec delay line, and produces 15-microsec pulse for each trigger received.-H. Vantine, Jr., and E.C. Johnson, Modified Transceivers Compute Distance, Electronics, 31:37, p 94-98.
